NS MLW100 Z
NS MLW100 Z
or
Call 508-277-9598
Description
Max Ø 114mm
Straight tubes
2 up to 4 stations
Quality and productivity: straight tube, multi-station wet finishing up to Ø114mm.

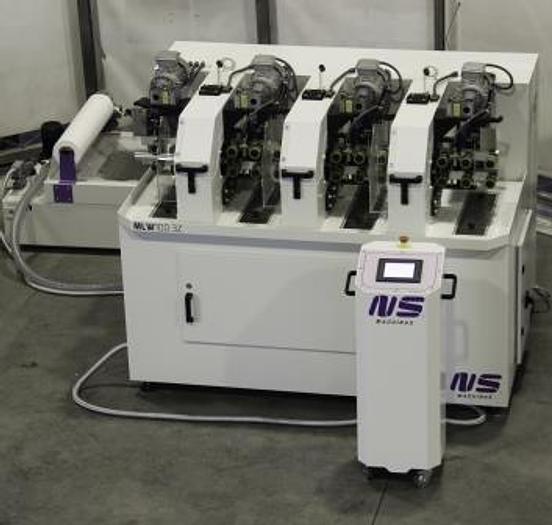

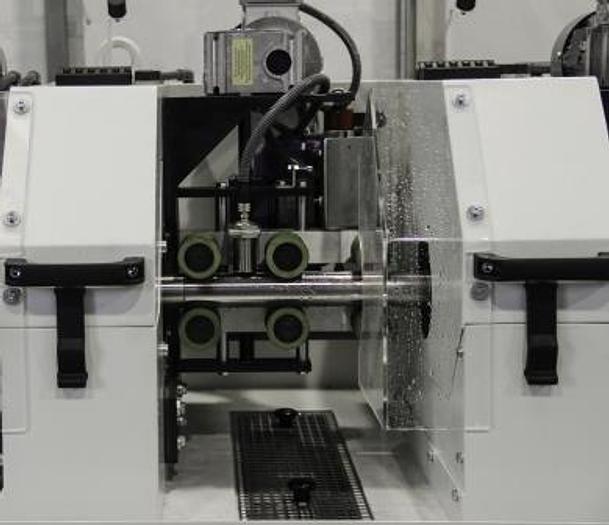

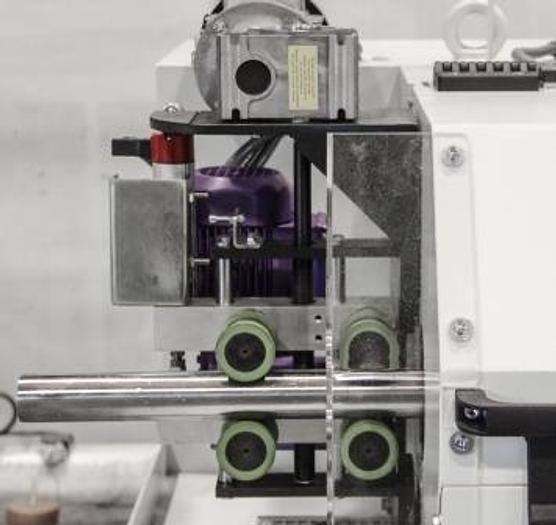

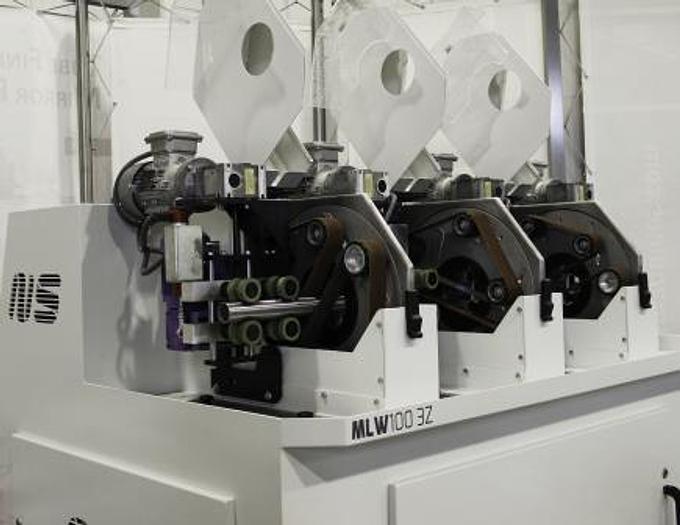

The MLW100 Z round tube, multi-station wet finishing machine, available with 2 stations (MLW100 2Z), 3 stations (MLW100 3Z) and 4 stations (MLW100 4Z), is equipped with the ML planetary system and enables a faster finishing job than single–station machines.
Automatic work set-up and control of all the information about the tube finishing are done in a mobile panel with an integrated touchscreen. Completely independent finishing stations. Final finish in only one go.
The wet-operation system enables faster cooling of the tube as well as the possibility of working different types of metal simultaneously.
Specifications
| Manufacturer | NS |
| Condition | New |
| Working capacity (Ø mm) | 10 - 114 |
| No. Stations | 2,3 |
| Abrasive belt dimensions (mm) | (4x) 50x940, (6x) 50x940 |
| Abrasive belt speed (m/s) | 10-25 |
| Abrasive belts motor (kW) | (2x) 3, (3x) 3 |
| Wheel motor (kW) | (2x) 1.5, (3x) 1.5 |
| Total power (kW) | 10, 14 |
| Consumption (A) | 20, 28 |
| Feeding Motor (kw) | (3x) 0.12, (4x) 0.12 |
| Dimensions (mm) | 1550x1055x1550, 1850x1900x1500 |
| Weight (kg) | 630, 960 |
| Feeding speed (m/m) | 1-5 |
