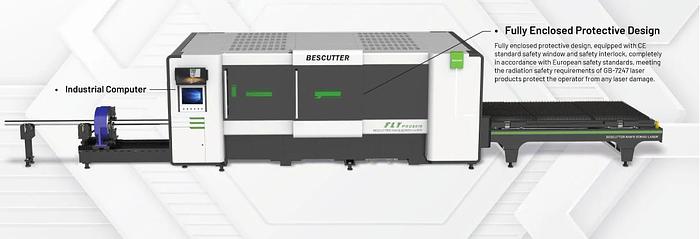

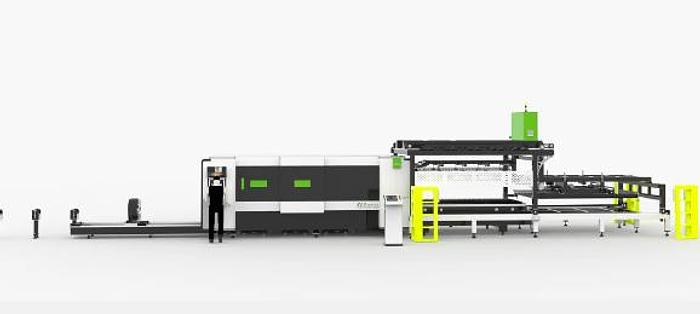

FLY PRO 5'X10' | 1500W - 6000W IPG | Fiber Laser Metal Sheet and Pipe Cutter Full Enclosure with Parallel Shuttle Table
FLY PRO 5'X10' | 1500W - 6000W IPG | Fiber Laser Metal Sheet and Pipe Cutter Full Enclosure with Parallel Shuttle Table
or
Call 508-277-9598
Specifications
| Manufacturer | Bescutter |
| Condition | New |
| Standarf Working Area | 10' x 5' (3050 x 1550 mm) |

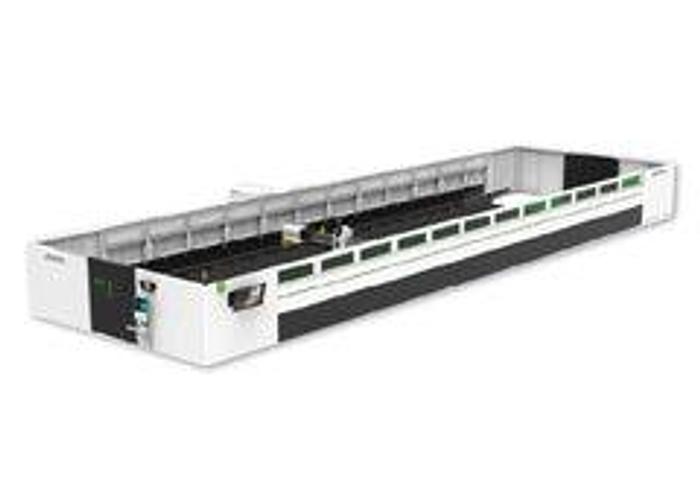

| Optional working area | 13' x 6.5' (4000 x 2000 mm)/ 20' x 6.5' (6100 x 2050 mm)/ 26' x 6.5' (8000 x 2000 mm) |
| Optional Laser Wattage | 1500W/ 3000W/ 6000W |
| X- axis distance | 120" (3050 mm) |
| Y- axis distance | 61" (1550 mm) |

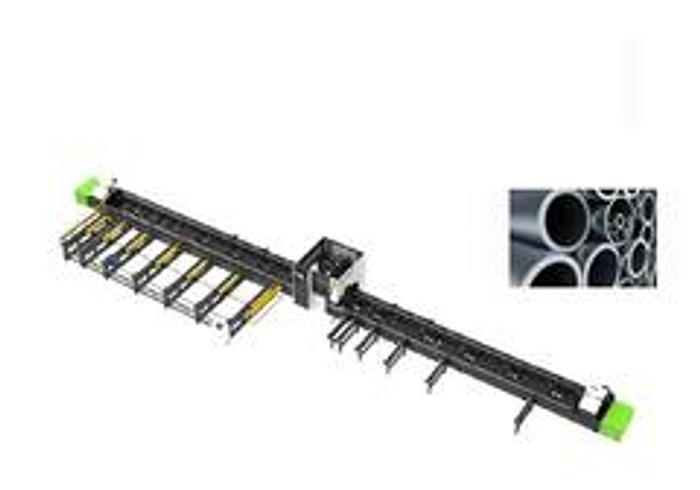

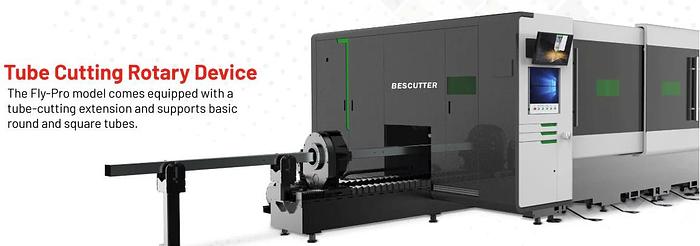

| Tube X1- axis distance | 59" (1500 mm) |
| Tube A, B axis- distance | Infinite rotation |
| Tube diameter | Standard: 0.78"-8.66" (20-220 mm) |
| Z-axis distance | 11.8" (300 mm) |
| X, Y Two-axis coordinated positioning speed (MAX) | 140 m/min |
| Positioning acceleration (MAX) | 1.5 G |
| Positioning accuracy | ±0.05 mm/m |
| Re-positioning accuracy | ±0.02 mm |
| Maximum sheet load weight | lbs (700 kg) |
| Maximum pipe load weight | Auto-loading: 220 lbs (100 kg), Manual-loading: 440 lbs (200 kg) |
| Laser resonator | IPG |
| Laser head | Raytools: 1.5 -4 KW , Precitec: 6 KW |
| Controlling System | Cypcut |
| X-Y-Z Servo Motors | X-2x2900W; Y- 1x850W ; Z-1x750W |
| Machine body weight | Approximately 15,432 lbs (7000 kg) |
| Pipe rotation weight | Approximately 2204 lbs (1000 kg) |
| Exchanging shuttle tables & auxiliary weight | Approximately 5511 lbs (2500 kg) |
| Dimension | No pipe cutting 350" x 118" x 80" (8900 x 3000 x 2050 mm), With pipe cutting 429" x 142" x 80" (10900 x 3600 x 2050 mm) |
