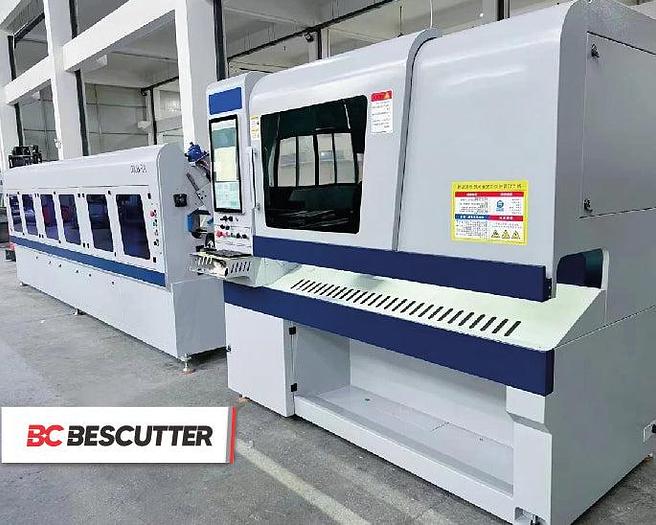

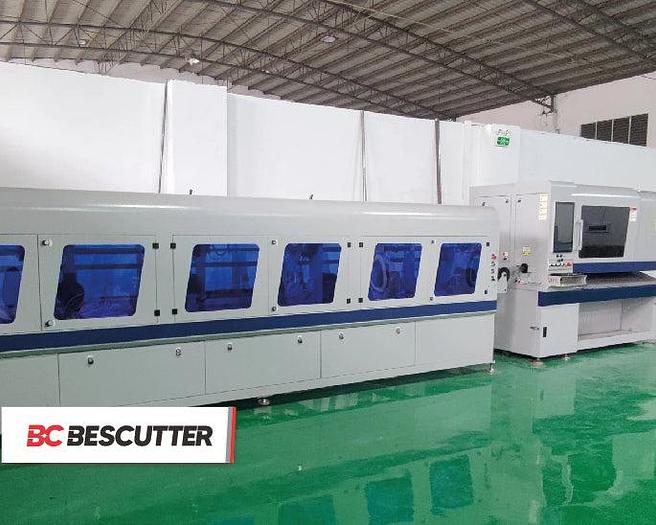

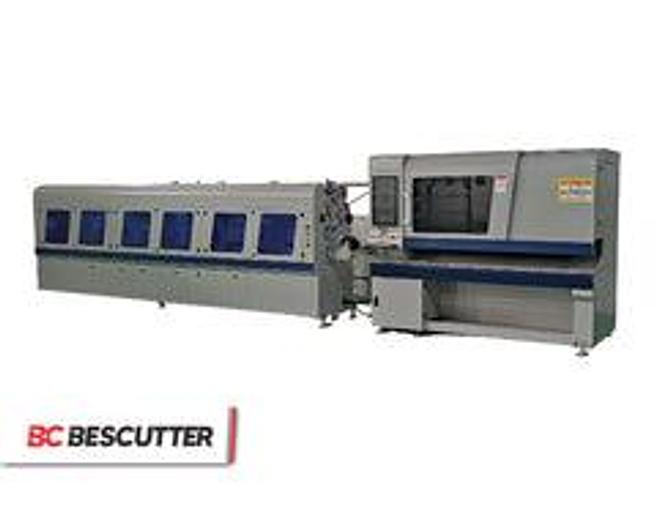

TUBE Ninja 4 In and Smaller | Fiber Laser Tube Cutting Machine With Automation
TUBE Ninja 4 In and Smaller | Fiber Laser Tube Cutting Machine With Automation
or
Call 508-277-9598
Specifications
| Manufacturer | Bescutter |
| Condition | New |
| Laser Power: | BC Power 1500W /2000W |
| Laser Wavelength: | 1070nm |
| Complete Consumption: | 19KW |
| XYZ AXIS Position Accuracy: | ≤±0.05mm |
| XYZ AXIS Repeat Position Accuracy: | ≤±0.02mm |
| Min Cutting Kerf: | 0.15mm |
| Acceleration: | 1.8G |
| Max RPM: | 160 |
| Machine Weight | 2T |
| Machine Size: | 334" x 70" x 70" (8500 X 1800 X 1800 mm) |
| Power Supply: | AC 208/240 single phase 85A |
| Assistant Air: | Air Compressor / 0.8MPa |
| Water Chiller: | HANLI / HL 3000 Industrial Refrigerated Chiller |
