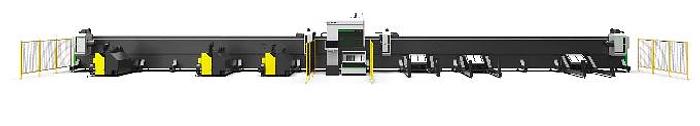

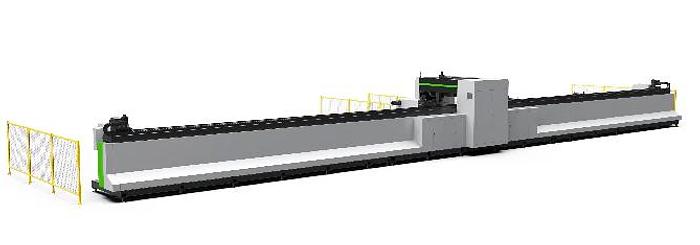

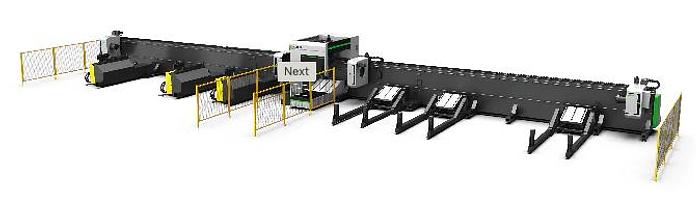

Hytube Titan TUBE CUTTER 6000W 20" Dia 4 Chuck Fiber Laser Pipe Cutting Machine
Hytube Titan TUBE CUTTER 6000W 20" Dia 4 Chuck Fiber Laser Pipe Cutting Machine
or
Call 508-277-9598
Specifications
| Manufacturer | Bescutter |
| Condition | New |
| Tube range (length) | 40' (12000 mm) |
| Tube diameter | Up to 20" cross diagonal |
| X-axis | 29.5' (9000 mm) |
| Y-axis | 8.86" (225 mm) |
| un-loading tube length | 0- 236" (0-6000mm) |
| CNC system | FSCUT5000 |
| X, Y-axis positioning accuracy | ±0.05 mm/1000 mm |
| X, Y-axis re-positioning accuracy | ±0.03 mm |
| A, B-axis positioning accuracy | ±30" |
| A, B-axis re-positioning accuracy | ±10" |
| X, Y-axis max positioning speed | 100 m/min |
| Max positioning speed | 60 rpm |
| Laser resonator | Hans Photonics 6KW |

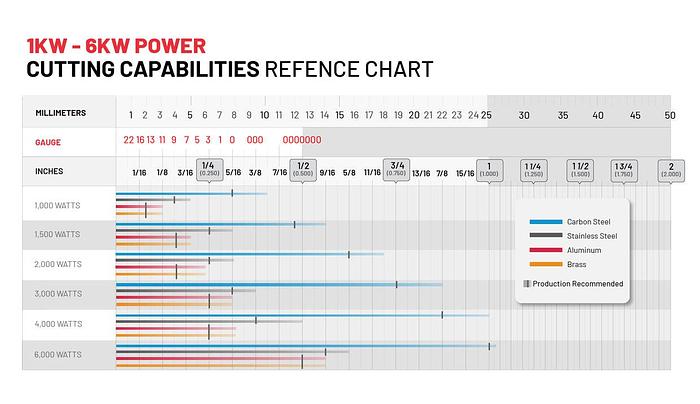

| Optional laser wattage | 3 KW/ 4 KW/ 6 KW |
| Laser head | RayTools |
| Machine Weight | 40,000 lbs |
| Dimensions (L x W x H) | 984"x 169" x 110" (25000 x 4300 x 2800 mm) auto-loading not included |
