Bescutter Titan Orbit 360

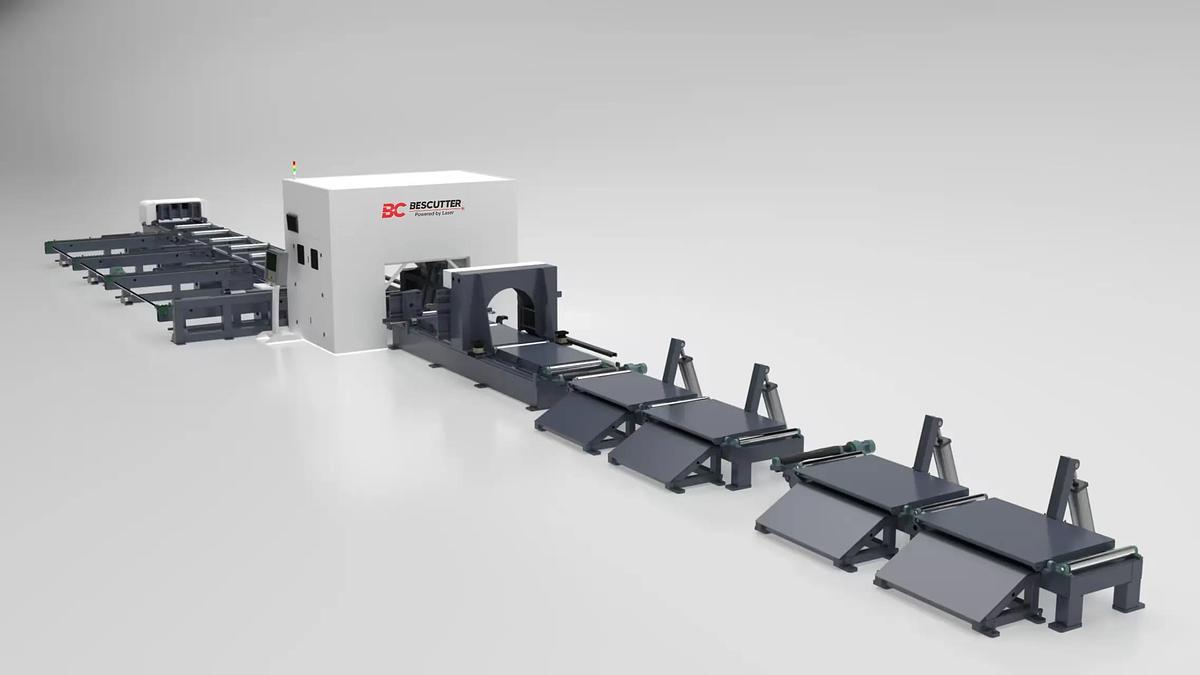

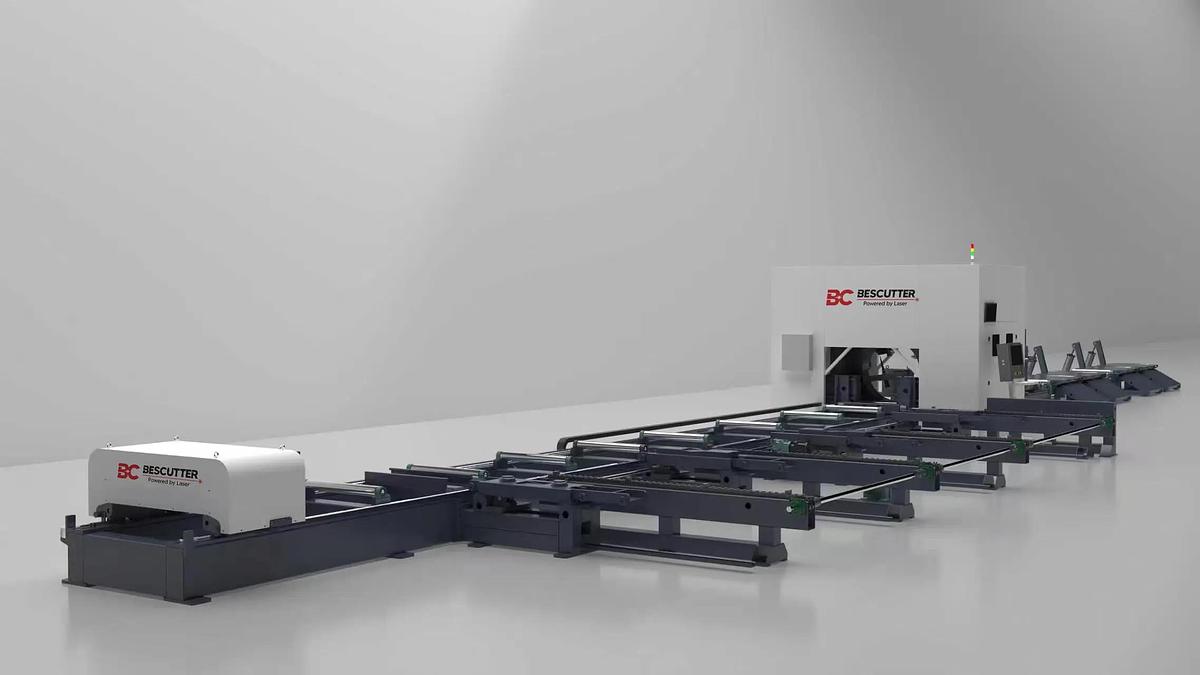

Titan Orbit – 360° Orbiting Tube Cutter (6KW–20KW)

Engineered for structural steel fabrication, the Titan ProfileMaster delivers unmatched versatility and precision. Equipped with a 360° rotating cutting head and ±45° bevel capability, this system enables complex cuts in a single setup—reducing secondary processing and increasing throughput.

Designed to handle I-beams, round tubes, and square profiles, the machine is ideal for steel structures, construction, and heavy fabrication industries.

Key Advantages:

• 360° orbiting cutting head for full-angle flexibility
• ±45° bevel cutting for weld-ready edges
• Compatible with I-beam, round, and square profiles
• Eliminates secondary beveling operations
• High efficiency for structural steel workflows

3 Non-Rotary Chuck Heavy Tube Cut

Core Machine Advantages: Built for Heavy Industry

Beyond its cutting capabilities, the entire machine architecture is designed for relentless industrial automation and long-term durability.

• End-to-End Automation: Features a seamless, fully automated workflow—from the motorized loading conveyor to the hydraulic flipping-and-unloading table. This drastically reduces manual labor, forklift dependency, and operator fatigue.
• Rugged 23-Ton Chassis: A heavy-duty, stress-relieved machine bed provides the ultimate foundation. Weighing in at 50,700 lbs (23 Tons), it absorbs high-speed vibrations to maintain flawless accuracy even under maximum loads.
• Precision: Driven by the premium Bochu CNC controller, INOVANCE servos, the machine delivers a remarkable repeatability.
• Intelligent Height Regulation: The cutting head features real-time surface tracking, automatically adjusting to any slight bends or irregularities in raw, untreated tubes (up to 0.15% bending degree) to prevent collisions and ensure a perfect focal length.
• Full 360-Degree Articulation: The B-axis cutting head rotates a full ±360° at speeds up to 20 r/min. This allows it to effortlessly cut complex contours, intersecting holes, and intricate saddle joints on any side of the pipe without needing to awkwardly reposition the heavy material.
• Built-In Weld Preparation (±45° Beveling): Thanks to the C-axis tilt capability, the machine can cut precise ±45° grooves and bevels directly during the cutting process. This completely eliminates the need for secondary manual grinding, milling, or edge-prep before welding, saving you massive amounts of labor and time.

The Ultimate Solution for Heavy-Duty Tube Fabrication

To dominate in the structural steel and heavy tube processing market, you need equipment that delivers both raw power and surgical precision. Titan PrfofileMaster is engineered from the ground up to slash material waste and maximize your throughput.

• 20KW Laser Power: Powered by a top-tier 20KW laser and a BOCI intelligent cutting head, this machine effortlessly slices through thick-wall carbon steel, stainless steel, and heavy structural profiles at high speeds.
• Cutting Head : 360° Rotation & ±45° Bevel Cutting
• Innovative Non-Rotary “Zero-Tailing” System: Stop throwing away expensive material! Our synchronized main, middle, and tail chucks work in perfect harmony. The tail chuck takes over at the very end of the cut, pushing the material completely through the cutting head to virtually eliminate tailing waste.
• Massive 4-Ton Payload & Automated Handling: Built for the heavy lifting. It handles pipes up to 40 feet (12 meters) long with a maximum single-piece weight of 8,800 lbs (4 metric tons). With fully automated loading and a hydraulic flipping-unloading table, you drastically reduce manual material handling and operator fatigue.
